5 Ton 6 Ton 7 Ton 8 Ton 10 Ton Diesel Lp Gas Electric Forklift with Paper Roll Clamp

Name: 5 Ton 6 Ton 7 Ton 8 Ton 10 Ton Diesel Lp Gas Electric Forklift with Paper Roll Clamp
Brand: snsc
Price: 1 USD

China 5 Ton 6 Ton 7 Ton 8 Ton 10 Ton Diesel Lp Gas Electric Forklift with Paper Roll Clamp factory

Model NO. : FD70

Fuel : Diesel

Load center : >500mm

Lift height : 3000~5000mm

Condition : New

Name : 7 Ton Diesel Forklift

Engine Brand : China Xinchai/Japan

Side Shift : Optional

Transmission : Auto Hydraulic

Mast : 2 Stage /3 Stage

Lifting Height : 3-7m

Color : Red/Yellow/Green

Tyre : Pneumatic /Solid

OEM Service : Yes

Forklift Attachments : Paper Roll Clamp

Transport Package : 40 Feet Container

Specification : 3550*2235*2500mm

Trademark : SNSC

Origin : China

HS Code : 84272090

Supply Ability : 500/Months

After-sales Service : Yes

Warranty : 12 Months

Cab Location : Adjustable

Type : Powered Pallet Truck

Power : Diesel Engine

Load Capacity : 5T - 10T

Customization : Available | Customized Request

Place of Origin : china

Brand Name : snsc

Certification : CE/ISO

MOQ : 1 unit

Price : negotiable

Packaging Details : shipped by container

Delivery Time : 30-45 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Product detail

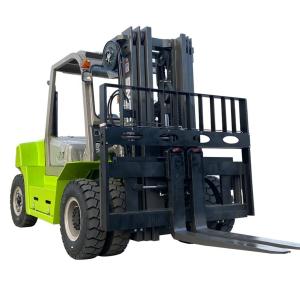

5 Ton 6 Ton 7 Ton 8 Ton 10 Ton Diesel Lp Gas Electric Forklift with Paper Roll Clamp

Engine	China Xichai & Japanese Engine
Transmission	Electric hydraulic automatic transmission
Mast	standard duplex 3m mast(3m-6m duplex or triplex mast are optional)
Tires	Air tires (solid tires are optional)
Forks	standard 1070mm forks, fork extension are optional
Seat	Toyota seat with shock absorption function
Other configuration	Reverse buzzer,working light Rear view mirrors, tool box
Attachment	side shifter, fork positioner, all kinds of clamps such as bale clamp, paper roll calmp, etc.

Model				FD70
Features	Power type			Diesel
	Rated Load		kg	7000
	Load Center		mm	600
	Lifting Height		mm	3000
	Free Lifting Height		mm	220
	Fork Size	LWT	mm	1220×150×70
	Mast Tilt Radius	Front/Rear	.	6/12
	Minimum Turning Radius		mm	3370
	Minimum Stacking Right Angle Channel Width		mm	5620
	Minimum Right Angle Channel Width		mm	3040
	Minimum Ground Clearance		mm	200
	Overhead Guard Height		mm	2460
	Front Overhang		mm	625
Performance	Max. Travelling Speed	Full load	km/h	26
	Max. Lifting Speed	Full load	mm/s	460
	Max. Traction	Full load	KW	51.4
	Max. Climbing Ability		%	20
Dimension	Overall Length	Without Fork	mm	3550
	Overall Width		mm	2235
	Max. Fork Lifting height (With Load Backrest)		mm	4380
	Mast Height		mm	2500
Chassis	Tyre	Front		8.25-15-14PR
	Tyre	Rear		8.25-15-14PR
	Wheel Base		mm	2250
	Wheel Tread	Front/Rear	mm	1470/1700
	Curb Weight	Without Load	Kg	9340
Power	Battery	Voltage/Capacity	V/Ah	(12/90)x2
	Engine	Model		CY6102BG6
		Rated Power	kw/r.p.m	81/2500
		Rated Torque	Nm/r.p.m	353/1700
		Bore*Stroke	mm	102×118
		Cylinder Amount		6
		Displacement	L	5.785
	Fuel Tank Volume		L	120
	Gears front/back			2/2
	Working Pressure		Mpa	20

VIP Solution

We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means SNSC forklift can be

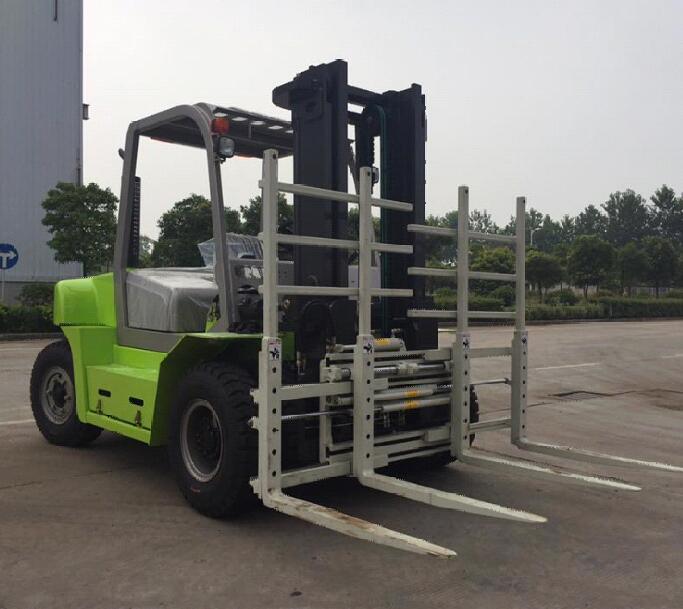

customized. For example, if your want move forks from left to right automatically without moving forklift, we suggest you side shifter. if you want to adjust fork's distance, we suggest fork positioner. If your working environment is very cold or rainy, we suggest you fully closed cabin with opening windows. And all kinds of attachments, such as paper roll clamp, bale clamp, block clamp, carton clamp, double forks and so on,

Company file

We are top 3 in Chinese fork lifter manufactures and top 20 in the world,over 500 employees,30,000 units forklift truck production capacity per year,5000 sets export volume,our R&D research is in Britain, and we invested 600 million in forklift factory, use dvanced equipment, eg: welding robot and others to realize over 95% automatic production line.

Guaranty time:
12 months (which begins from the forklift arrived destination port date) or 2000 working hours, whichever comes first.

After-sale service:
We have a professional forklift after-sale service team. We can guarantee you the 24-hour calling rapid-reaction mechanism. Please contact us freely, if any questions.
5 Ton 6 Ton 7 Ton 8 Ton 10 Ton Diesel Lp Gas Electric Forklift with Paper Roll Clamp

Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking
performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes
loading, lifting, tilting, turning, climbing, etc.

Package with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping:

Nude package, fixed by Triangle iron Wedge with Flexible packing tape in container.

For 7 Ton Diesel Forklift, 1*40'HQ - 2 Units

FAQ

1. What kind OEM Service you can provide?
a: Engine: You can choose a variety of engines, Euro 5 and EPA engine;
b.LOGO: We candesign and customize forklift of your own brands;
C: COLOR: Provide color number to us, we can customize the color for you;
d: Others: We can produce what you want according to your requirements.

2. Payment terms?
a. T/T payment term, 30% payment is required in advance for production, 70% balance shall be paid before delivery.
b.100% irrevocable L/C at sight.

3.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.

4.Delivery date:
If clients need normal products, we will deliver the products within 30days. If clients need customerized products, the delivery date depend on the requirements.

5. What logistics ways we can work for delivery?
a. For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.
b.For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
c. For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.
